Audible And Visual Alarm Mode Nljd Equipment Junction Detector

Product Categories

Beijing Heweiyongtai Sci & Tech Co., Ltd.

Contact Now

Name: Audible And Visual Alarm Mode Nljd Equipment Junction Detector
Brand: HEWEI
Price: 1 USD

Brand Name : HEWEI

Model Number : HW-24

Certification : YES

Place of Origin : CHINA

MOQ : 1 set

Price : USD/Set FOB shenzhen

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 20 working days

Packaging Details : carton case

Maximum continuous radiation power (CW) : 300W

Signal frequency : 2400 - 2483 MHz

The adjustment range of the probing signal power : 20dBm

2nd Harmonic frequency : 4812 - 4828 MHz

3rd Harmonic frequency : 7218 - 7242 MHz

Dynamic range : ≧ 80 dBm

Battery type : Built-in Rechargeable Li-battery

Device weight : ≦1kg

Contact Now

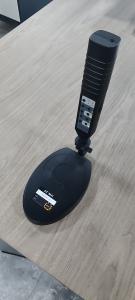

Non-Linear Junction Detector

Model: HW-24

Technical Specification

Transmitter
Signal frequency	2400 - 2483 MHz
Max. peak power of radiation in pulse mode	10W
Maximum continuous radiation power (CW)	300W
The adjustment range of the probing signal power	20dBm
Receiver
2^nd Harmonic frequency	4812 - 4828 MHz
3^rd Harmonic frequency	7218 - 7242 MHz
Receiver Sensitivity	≧ -108 dBm
Dynamic range	≧ 80 dBm
Power supply
Battery type	Built-in Rechargeable Li-battery
Voltage	3.7 v
Capacity	7.8 Ah
Battery life	3 hours at max power in a pulsed mode
Battery life	1 hour at max power in a continuous mode
Main Unit
Device dimension (in working condition)	L47cm x W12.5cm x H6cm
Device dimension (in folding condition)	L28cm x W12.5cm x H6cm
Device weight	≦1kg
Alarm mode	Audible and Visual (LED indicator)
Operating temperature	+5℃ ~ +40℃

Audible And Visual Alarm Mode Nljd Equipment Junction Detector
