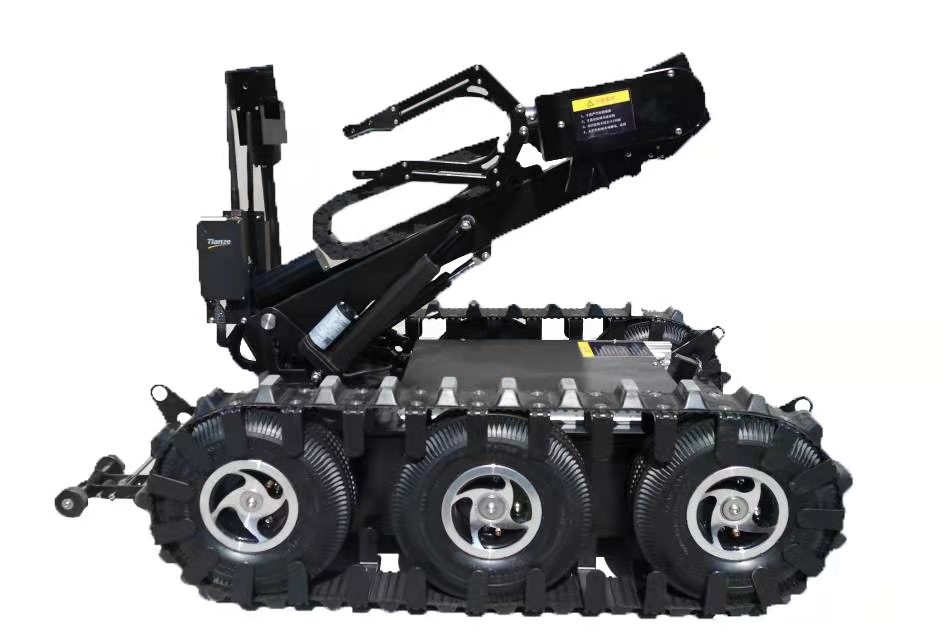

90kg Flexible Remote Bomb Disposal Machine Robot Aircraft Grade Aluminum Alloy

Name: 90kg Flexible Remote Bomb Disposal Machine Robot Aircraft Grade Aluminum Alloy
Brand: HEWEI
Price: 1 USD

China 90kg Flexible Remote Bomb Disposal Machine Robot Aircraft Grade Aluminum Alloy wholesale

Brand Name : HEWEI

Model Number : HW-18

Certification : YES

Place of Origin : CHINA

MOQ : 1 set

Price : USD/Set FOB shenzhen

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 20 working days

Packaging Details : carton case

Weight : 90kg

Material : Aircraft-grade aluminum alloy

Color : Black

Working time : ≥ 3 hours

Limited Passage Width : ≤700mm

Over-obstacle Capacity : It can cross the obstacle of 320mm height.

Contact Now

EOD Robot

Model: HW-18

Features

All terrain and all-weather adaptability, reliability, stability.
Medium robot with dual-use moving system can move by all-wheel drive or all-track drive. Its average size can pass through the door 700mm in width.
Grasping capability is up to 30KG. This robot can grasp and transfer various forms of explosive.
Great over-obstacle capacity. It can go upstairs and downstairs, span obstacles of vertical height 280mm.
Strong drag capability. It can drag off-road vehicle or commercial vehicle weighing 3 tons.
Load capacity is up to 160KG.
Rapid deployment, quick response and multi-DOF.
Images controlled remotely can be wirelessly transmitted. Operating mode: wire/ wireless.
Professional design, easy operation and high duration.

Technical Parameter

Robot Body
Materials	Aircraft-grade aluminum alloy, precision machining
Dimensions	LWH: 910 * 650 * 500 mm
Weight	90kg (without accessories, package and control box)
Battery	DC24V lead acid rechargeable battery
Working time	≥ 3 hours
Maximum Speed	≥1.2m/s
Loading Capacity	When loading 140KG, it can move normally (actual measurement).
Lift Capability	It can move with clamping weights of 40K and will not drop (actual measurement).
Grade Ability	It can climb up the slope of 45° and stop steadily on the slope.
Climbing Stairs Ability	With traction-free assist, it can climb up and down the stairs of 160mm step height and 45°angle slope.
Turning Ability	In horizontal cement ground or bituminous pavement, the robot can turn clockwise or anticlockwise 360º.
Limited Passage Width	≤700mm
Over-obstacle Capacity	It can cross the obstacle of 320mm height.
Max. Mechanical Arms Spread	1650mm
Gripper of Manipulator Maximum Expansion Range	250mm
Arm Extension when stretch out and draw back	500mm
Control Distance	Wireless control: ≥150m (visible range); wire control: 100m (optional 200m);
Forward Camera	Color infrared induction
Backward Camera	Color infrared induction
Cradle Head Various focal Camera	Color infrared induction
Manipulator Gripper Camera	Color infrared induction
Floodlight	Two group LED floodlight (one group on the front and back)
Control Terminal
Box	Portable, waterproof, dustproof, high strength
Size	≤ L 460 * W 370 *H 260 mm
Weight	≤ 10kg
Display Screen	12-inch HB LCD, wide viewing angle, outdoor clear picture
Operation	High-quality rocker handle, human software interface design, easy observation and convenient operation
Display Image	It can monitor 4 video signals simultaneously or separately amplify one of 4 video signals
Battery	Rechargeable 24V lithium battery, working time ≥ 3 hours when fully charged.
